Thinking big in every detail.

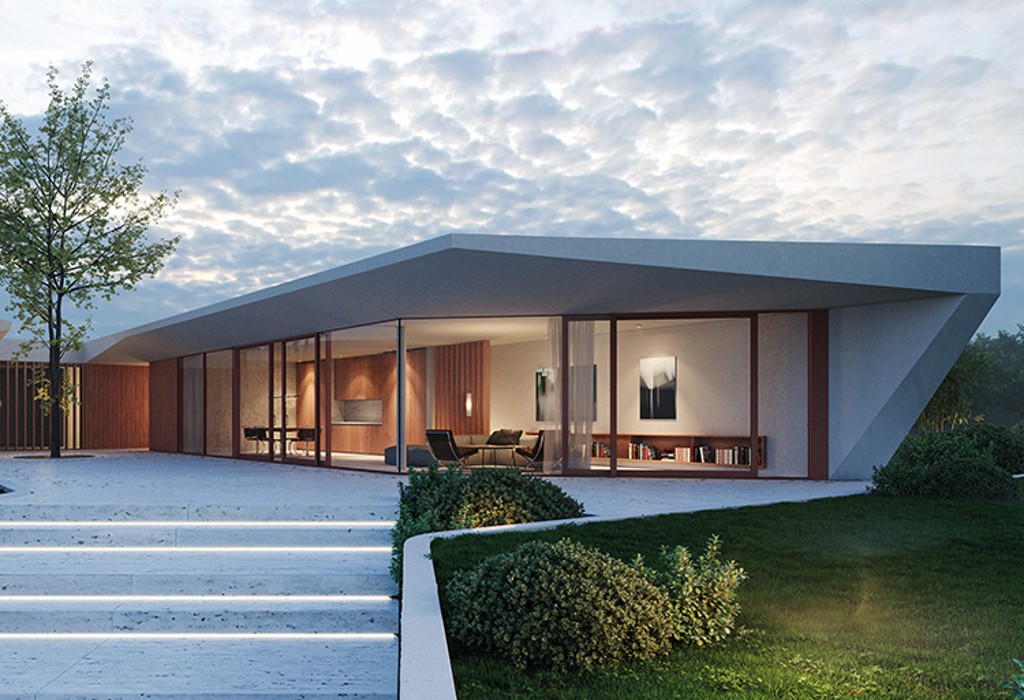

The heroal S 77 SL lifting-sliding door system creates harmonious building looks in impressive dimensions.

Generous lift and slide door heroal S 77 SL

Generous glass surfaces with an unobstructed view of the outside lend an exclusive character to the architecture of residential and commercial buildings. Enhanced by a high-quality opening element providing free access to the outside, the building shell gains additional functional value. A perf

Generous glass surfaces with an unobstructed view of the outside lend an exclusive character to the architecture of residential and commercial buildings. Enhanced by a high-quality opening element providing free access to the outside, the building shell gains additional functional value. A perfectly thought-out solution for this application is the lifting-sliding door system heroal S 77 SL which stands out for its subtle design, blending in perfectly into any architectural style, and impressive large dimensions.

Product details

heroal S 77 SL
heroal S 77 SL opens up new large dimensions and guarantees maximum transparency with its unique innovative frame construction. The new generation of heroal lifting-sliding doors combines a movable monorail casement with fixed frame glazi

Product details

heroal S 77 SL

heroal S 77 SL opens up new large dimensions and guarantees maximum transparency with its unique innovative frame construction. The new generation of heroal lifting-sliding doors combines a movable monorail casement with fixed frame glazing and minimal view widths. This large frameless glazing with clean lines forms an almost invisible link between the inside and outside, extending the living space beyond its actual limits.

heroal S 77 SL >

Harmonious Looks in Impressive Dimensions

  • Lifting-sliding door with impressive height
    The lifting-sliding door system heroal S 77 SL (shape line) opens up new dimensions with an impressive height of up to 3 metres, creating maximum transparency with its unique, innovative frame design. The system combines a movable monorail sash with frameless fixed glazings with minimum face wi

    The lifting-sliding door system heroal S 77 SL (shape line) opens up new dimensions with an impressive height of up to 3 metres, creating maximum transparency with its unique, innovative frame design. The system combines a movable monorail sash with frameless fixed glazings with minimum face widths. Used as a 90-degree corner solution with an all-glass corner made of insulating glass, or as a corner solution that can be opened without the need for a support in the corner area, the heroal S 77 SL lifting-sliding door system becomes an architectural design element.

  • Exclusive color variety with Les Couleurs® Le Corbusier®
    Thanks to heroal's exclusive cooperation with Les Couleurs® Le Corbusier®, the heroal S 77 SL lifting-sliding door is available in the colour system of the Polychromie Architecturale. The 63 shades inspired by nature are perfectly matched and can be harmoniously combin

    Thanks to heroal's exclusive cooperation with Les Couleurs® Le Corbusier®, the heroal S 77 SL lifting-sliding door is available in the colour system of the Polychromie Architecturale. The 63 shades inspired by nature are perfectly matched and can be harmoniously combined with each other. Each of the Le Corbusier colours has an individual effect on rooms and objects. In addition to the Les Couleurs® Le Corbusier® colours, heroal S 77 SL is also available in more than 500 RAL and DB colours, which, like the Le Corbusier colours, are applied to the aluminium profiles of the lifting-sliding door using the particularly durable heroal hwr powder coating. Impressive looks such as wood, concrete or rust can be created with heroal SD coating technology.

  • Maximum ease of use
    Even with sash weights of up to 400 kg, heroal S 77 SL stands out for its simple, convenient operation. The particularly smooth operation and great ease of use are made possible by concealed elements such as tension springs, retraction and handle dampers.
    If motorised operation at the touch

    Even with sash weights of up to 400 kg, heroal S 77 SL stands out for its simple, convenient operation. The particularly smooth operation and great ease of use are made possible by concealed elements such as tension springs, retraction and handle dampers.
    If motorised operation at the touch of a button, radio remote control or smartphone is required, the heroal SF Drive drive system can be integrated.

  • Accessibility

    Unrestricted mobility is offered by heroal S 77 SL barrier-free or designed as a zero barrier in accordance with German industry norm DIN 18040. As an option, the heroal DS drainage system can be integrated to reliably prevent moisture damage in the interior. It drains off any surface water without backflow.

  • Performance features with added value: thermal insulation and burglary protection
    The tried and tested heroal sash geometry enables optimum thermal insulation properties with a Uw value of ≥ 0.86 W/m²K for all sash sizes and weights. Various insulation variants are available, e.g. the highly insulated heroal S 77 SL HI lifting-sliding door. In addition, the heroal

    The tried and tested heroal sash geometry enables optimum thermal insulation properties with a Uw value of ≥ 0.86 W/m²K for all sash sizes and weights. Various insulation variants are available, e.g. the highly insulated heroal S 77 SL HI lifting-sliding door. In addition, the heroal sealing technology with four sealing levels and the use of EPDM sealing corners for sash and centre joint sealing ensure optimum performance features in terms of air permeability (class 4) and tightness against driving rain (class 9A). Certification up to resistance class RC 2 ensures a high level of burglary resistance.

More flexibility and planning reliability

Harmonious product compatibility


For maximum flexibility, heroal S 77 SL can be combined with other aluminium systems from the heroal portfolio. As an insert element within the heroal C 50 mullion-transom curtain wall system, heroal S 77 SL adds additional functionality to the curtain wall. Effective thermal insulation is provided by heroal sun protection systems such as the heroal VS Z zip screen or the heroal VS Z corner solution, a shading solution for corner areas. An insect screen from the heroal IS system can also be used together with heroal S 77 SL.


At your side in every planning phase


heroal supports building projects in every planning phase and provides architects and planners with all the information they need. The extensive range of systems and services from heroal thus offers architects and planners a great deal of creative freedom for the implementation of their projects. At the same time, it creates planning reliability, because the heroal aluminium system solutions are supplied from a single source and can be reliably combined with one another - for building shells that look as if cast from the same mould, and solutions that are well thought out down to the smallest detail.

Current project reports

Learn more about building projects that were created with heroal systems. In interviews and reports, fabricators, architects and investors refer to their cooperation with heroal.

Project reports >
References

In our reference data base, you will find building projects for different purposes created with heroal systems: offices and administration, industry and commerce, hotels and residential areas, as well as education and culture.

References >

Tailored support for architects

heroal architectural consultants can provide you all-encompassing consulting. heroal’s technical support deals with all the questions you may have concerning windows, doors and curtain walls as well as roller shutters, sun protection and roller doors -if required, also on-site of your building project. Are you new to heroal? Get in touch with us today!

Request support for architects > Request on the phone >

Advantages of heroal at a glance

  • Tailor-made solutions for unique and exceptional architecture
  • Competence in the fields of windows, doors, curtain walls as well as roller shutters, sun protection and roller doors
  • Our experts provide personal advice for you for the creation of your building project
  • Performance of special tests and provision of special solutions
  • Awards for sustainable products
  • Products made in Germany
